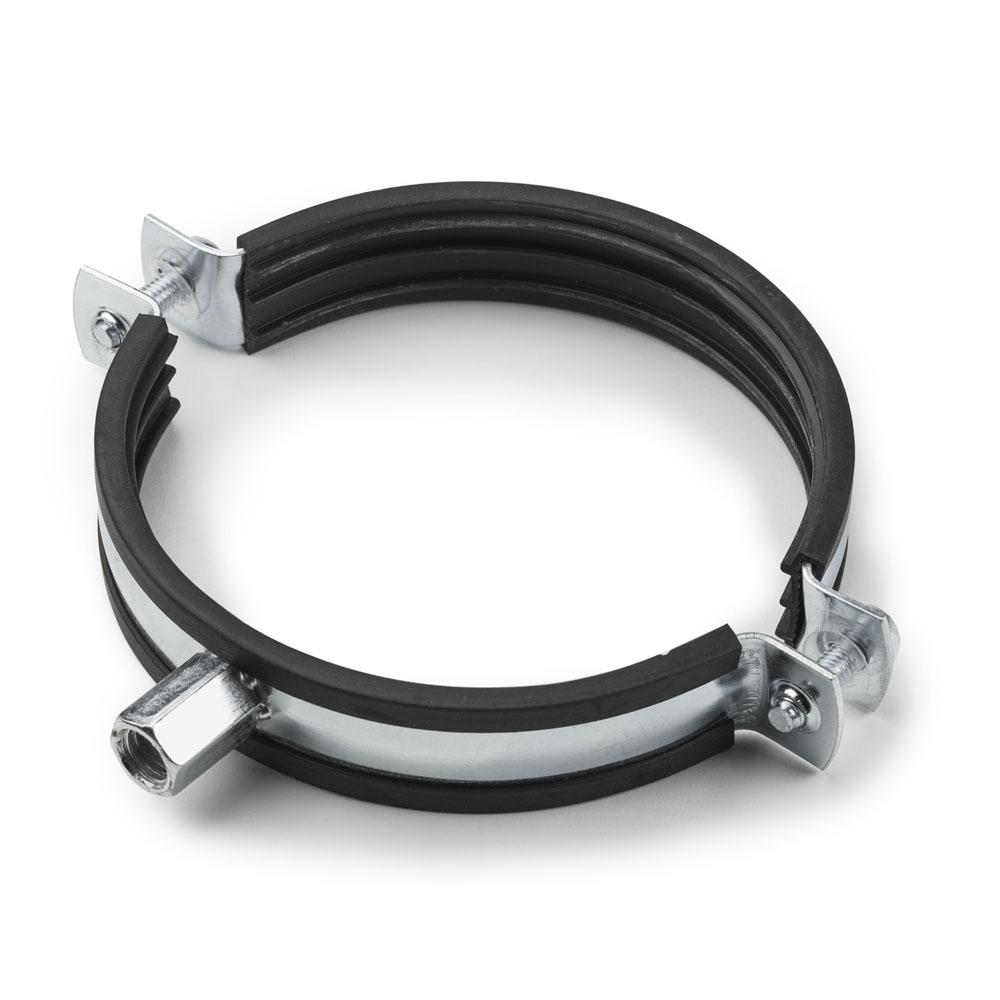

Parker ER01 L1 00 3" (76mm) Rubber Insulated Pipe Hanger

Item #: ER01 L1 00

Need additional help, call 833.258.7473

Product Description

Transair Pipe Hangers are lightweight and easy to install. All hangers are installed by positioning a threaded rod into a fixed position, then threading the pipe hanger onto the rod. This installation method keeps the piping stable during the expansion and contraction of the system. To overcome most pipe routing challenges, Parker offers spacers and threaded rod adapters that can be used to extend the pipe below or away from an obstacle. Transair compressed air piping can only be hung using Transair pipe hangers. The use of non-Transair hangers can void the warranty.

All hangers are 100% recyclable, silicone free, and made from materials with no propagation of flame. All hangers conform to the UL94V-2 standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.

Each Transair pipe hanger can support 44lbs, but Parker suggests using 2 clips per length of pipe. For proper installation and placement of the hangers, download our installation manual.

Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace

Features / Benefits:
• Modular and reusable
• 100% recyclable
• Faster installation
• Lower installation costs
• Lightweight
• 10-year Warranty

Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
• Process Water
• Chemical Transfer

Product Specs

ApplicationAluminum Pipe, In Plant Pneumatic
Assembly Time0.1 Hours
Body MaterialTreated Steel
BrandParker, Transair
ConfigurationPipe to Port
Connection 1 Size3 inch, 76 mm
Connection 1 TypePipe
Connection 2 Size3/8 inch, M8|M10 mm
Connection 2 TypeFemale Metric
DivisionFluid System Connectors Division, Low Pressure Connectors Europe Division
IndustryGeneral Industrial
Maximum Operating Pressuren/a bar, n/a psi
Maximum Operating Temperaturen/a °C, n/a °F
Minimum Operating Temperaturen/a °C, n/a °F
Pipe O.D. (inch)3
Pipe O.D. (mm)76
Product StylePipe hanger
Product TypeCompressed Air Piping
Quantity per Box25
ShapeCircular
TechnologyFluid & Gas Handling, Pneumatics
TypePipe Hanger
Weight0.076 lb, 0.168 kg
