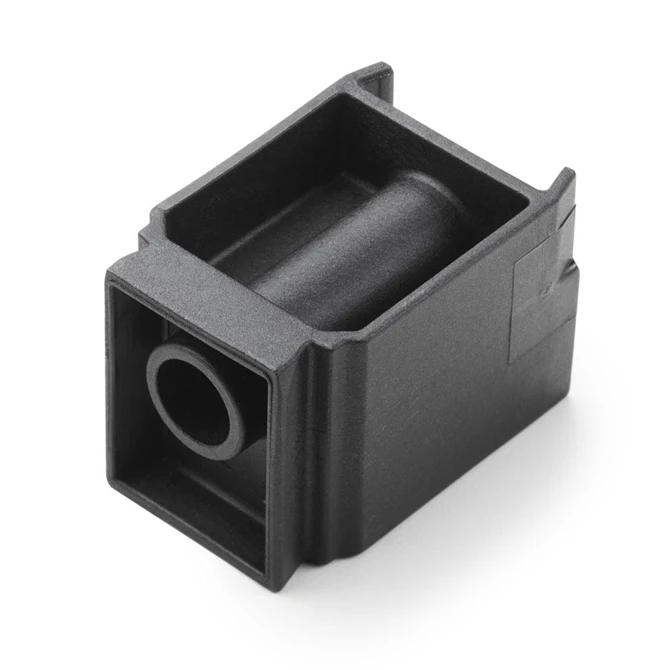

Parker 6697 00 03 Spacer Block for 1/2" (16.5mm) to 1-1/2" (40mm) Transair Pipe Hangers

Item #: 6697 00 03

Need additional help, call 833.258.7473

Product Description

Transair Pipe Hangers are lightweight and easy to install. All hangers are installed by positioning a threaded rod into a fixed position, then threading the pipe hanger onto the rod. This installation method keeps the piping stable during the expansion and contraction of the system. To overcome most pipe routing challenges, Parker offers spacers and threaded rod adapters that can be used to extend the pipe below or away from an obstacle. Transair compressed air piping can only be hung using Transair pipe hangers. The use of non-Transair hangers can void the warranty.

All hangers are 100% recyclable, silicone free, and made from materials with no propagation of flame. All hangers conform to the UL94V-2 standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.

Each Transair pipe hanger can support 44lbs, but Parker suggests using 2 clips per length of pipe. For proper installation and placement of the hangers, download our installation manual.

Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace

Features / Benefits:
• Modular and reusable
• 100% recyclable
• Faster installation
• Lower installation costs
• Lightweight
• 10-year Warranty

Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
• Process Water
• Chemical Transfer

Product Specs

ApplicationAluminum Pipe, In Plant Pneumatic
Assembly Time0.02 Hours
Body MaterialTechnical Polymer
BrandParker, Transair
Configurationn/a (spacer)
Connection 1 Sizen/a inch, n/a mm
Connection 1 TypePipe
Connection 2 Sizen/a inch, n/a mm
Connection 2 TypeFemale BSPP
DivisionFluid System Connectors Division, Low Pressure Connectors Europe Division
IndustryGeneral Industrial
Maximum Operating Pressuren/a bar, n/a psi
Maximum Operating Temperaturen/a °C, n/a °F
Minimum Operating Temperaturen/a °C, n/a °F
Pipe O.D. (inch)1/2 to 1-1/2
Pipe O.D. (mm)16.5 to 40
Product StyleSpacer
Product TypeCompressed Air Piping
Quantity per Box15
ShapeStraight
TechnologyFluid & Gas Handling, Pneumatics
TypeSpacer
Weight0.009 lb, 0.0205 kg
