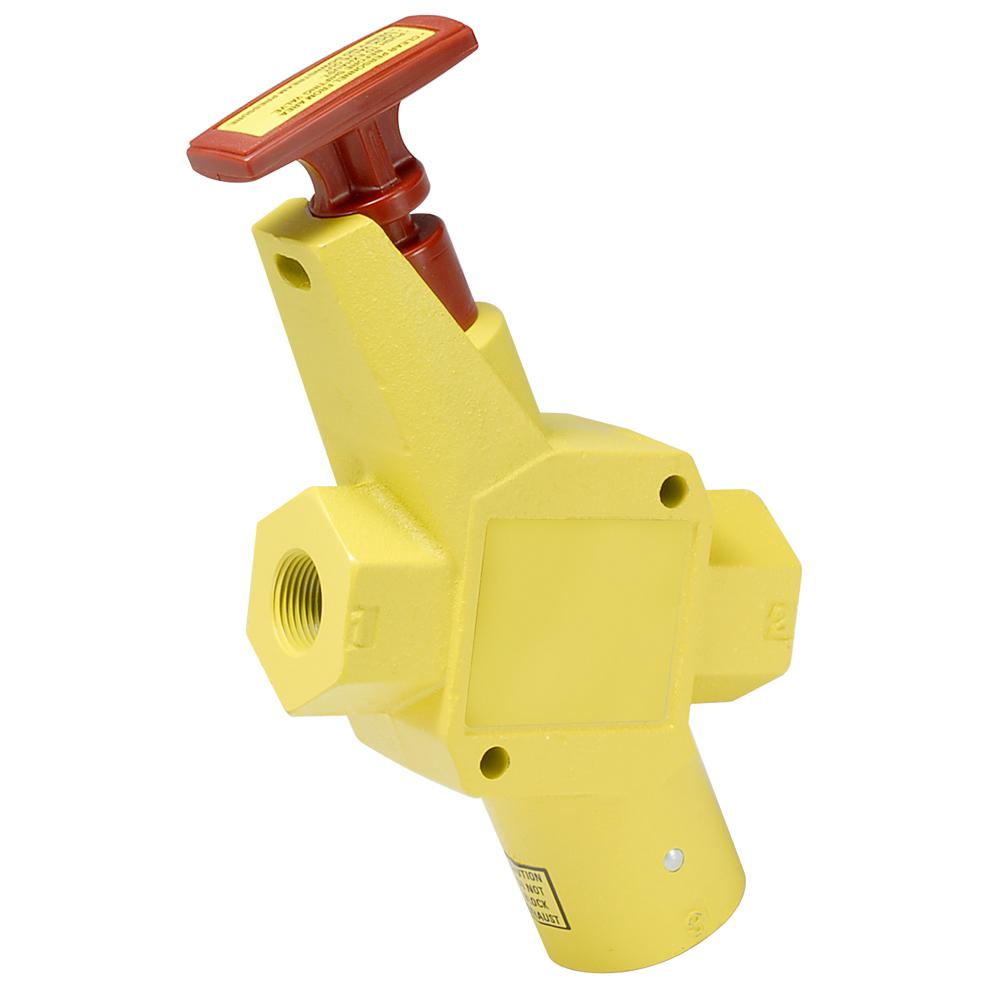

Parker FLV8NAB 1" Standard Lockout Valve w/ 1-1/4" Exhaust Port
- Item #: FLV8NAB
Need additional help, call 833.258.7473
Product Description
Parker's line of Pneumatic lock-out valves deliver increased efficiency and productivity while meeting safety standards. OSHA (Occupational Safety and Health Administration) requires the use of a lock-out valve near the point of use. This valve is designed to stop the flow of compressed air and vent the lines quickly in case an emergency shut-down is required. For faster venting, the exhaust port is larger than the inlet/outlets ports.
Markets:
•Automotive Assembly
•Food & Beverage
•Packaging
•Industrial Plants
•Aerospace
Features/Benefits:
•Integral 1/2”, 3/4”, 1”, 1-1/2”, or 2” NPT Ports
•Robust aluminum body
•Complies with OSHA 29 CFR part 1910
•Complies with ANSI B11 and PMMI B155 requirements
Applications:
•Compressed Air
Item has been added to your cart
Parker FLV8NAB 1" Standard Lockout Valve w/ 1-1/4" Exhaust Port
Product Specs
- Body MaterialCast Aluminum Alloy
- DivisionFluid System Connectors Division
- Exhaust Flow Rate216 SCFM
- Exhaust Port Size1-1/4 inch
- Flow Rate375 SCFM
- Handle MaterialPlastic
- Maximum Operating Pressure300 psi
- Maximum Operating Temperature175 °F
- Minimum Operating Temperature40 °F
- Port Size (inch)1
- Seal MaterialCarboxylated Nitrile
- Spring MaterialStainless Steel
