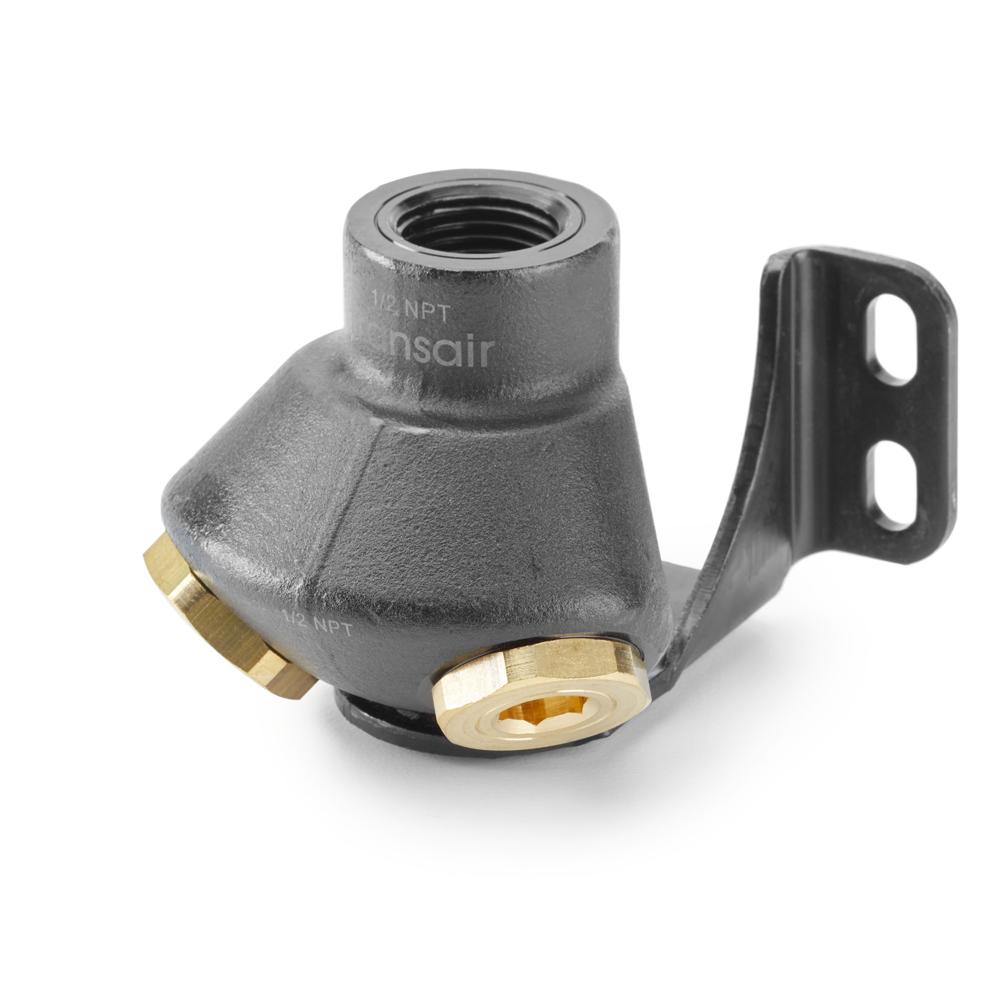

Parker 6691 22 22 1/2" Female NPT Threaded 2 Port 45° Wall Bracket w/ 1/4" Female NPT Threaded Ports

Item #: 6691 22 22

Need additional help, call 833.258.7473

Product Description

Transair Wall Brackets make connecting machinery or tools to the supply line quick and easy. These brackets are rated for use in compressed air as well as industrial/inert gas applications. To match the needs/constraints of the environment, Parker offers a one (1), two (2), or three (3) port options. For extra control and safety over the media flow, we offer select wall brackets with an integrated ball valve. All wall brackets are equipped with a drain outlet for easy air or moisture drainage.

The “full bore” design of Transair wall brackets paired with the low coefficient of friction in the aluminum pipe ensures optimal flow throughout the compressed air system. All wall brackets are 100% recyclable, silicone free, and made from materials with no propagation of flame. All wall brackets conform to the UL94HB standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.

Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace

Features / Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Full-bore design
• Optimum flow rate
• 100% recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty

Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)

Maximum Working Pressure:
• 1/2” to 4”: 232psi (15,9bar) when the system is operated between -4 to +113 F (-20 to +46.1 C)
• 6”: 188psi (12,9 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)

Maximum Working Temperature (1/2” to 4”):
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower

Product Specs

ApplicationCompressed Air, Industrial Gas, Inert Gases
Assembly Time0.15 Hours
Body MaterialTreated Brass
BrandParker, Transair
ConfigurationPort to Port
Connection 1 SizeNPT 1/2 inch
Connection 1 TypeFemale NPT
Connection 2 SizeNPT 1/2 inch
Connection 2 TypeFemale NPT
Connection 3 SizeNPT 1/4 inch
Connection 3 TypeFemale NPT
Connection Thread Size (inch)1/2
DivisionFluid System Connectors Division, Low Pressure Connectors Europe Division
For Fluid TypeAir, Industrial Gas
IndustryGeneral Industrial
Maximum Operating Pressure16 bar, 232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm
Maximum Operating Temperature185 °F, 85 °C
Minimum Operating Temperature-20 °C, -4 °F
Pipe Outside Diameter1"|1/2" inch, 25|16/5 mm
Product TypeWall Brackets
Quantity per Box1
Seal MaterialNBR
ShapeStraight, Threaded 2 Port 45° Wall Bracket
Specifications MetASME B31.1 - 31.9, CE, EN 573.3, EN 755.2, EN 755.8, ISO 8573 (Air Quality), ISO 9001, TUV
TechnologyFluid & Gas Handling, Pneumatics
Weight0,630 kg, 1,390 lb
